You are here: User Guide for PaperSave for Dynamics GP > PaperSave Web Client for Dynamics GP > PaperSave Web Workflow > Adding Documents Using PaperSave Web Workflow

Adding Documents Using Drag and Drop in PaperSave Web Workflow

PaperSave provides you the facility to add documents in PaperSave Web Workflow using Drag and Drop functionality. Following are the steps to add documents using PaperSave Web Workflow:

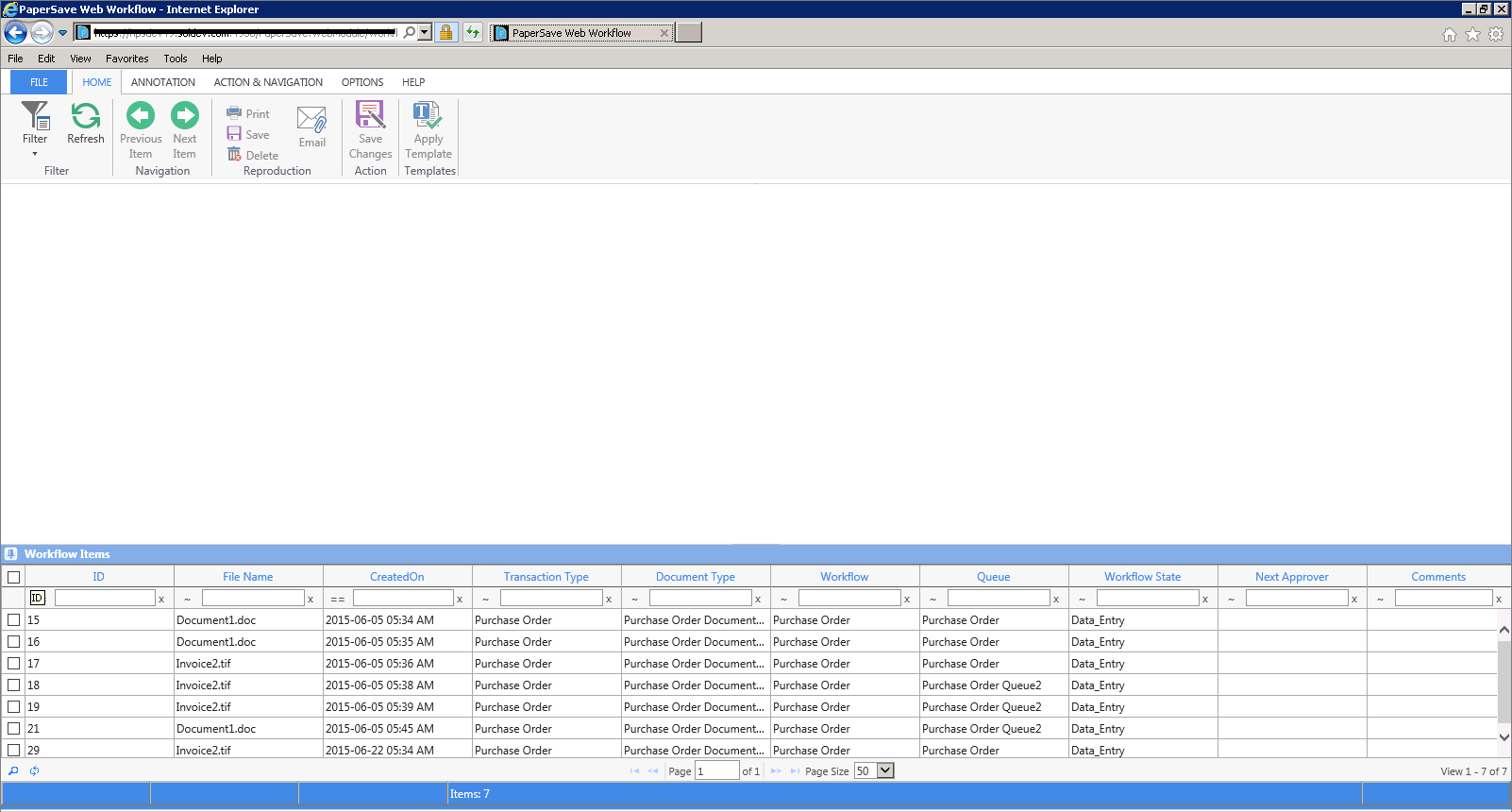

1. Click on PaperSave Web Workflow icon from PaperSave Start.aspx page to open PaperSave Web Workflow page as displayed below.



Click on image to magnify/shrink
Click on image to magnify/shrink



2. Firstly, you need to select the appropriate filters from the Filter drop down list.



· For Workflow 1.0 you can select the filter options viz, Workflow Type, Workflow, Workflow Queue and Workflow State as displayed in below screen. Then click on OK button.



Web WE-2



· For Workflow 2.0, you can select the filter options viz, Workflow Type, Workflow and Workflow Step as displayed in below screen. Then click on OK button.



Web WE-3



3. After selecting the appropriate filters, you need to drag and drop the files that you want to add to PaperSave.



Note:

· If the current Workflow User is set as Out of Office, then that user will not be allowed to drag and drop the Workflow Items in PaperSave Web Workflow Page.
· If you have selected all the necessary filters from Filter drop-down list for Workflow 1.0 and or Workflow 2.0, then the dragged document directly adds to the respective Workflow or Workflow Queue. Therefore, you should not see the following prompts asking you to select the values from respective drop-down lists for Workflow 1.0 and or Workflow 2.0.



For Workflow 1.0:



· If the selected Workflow Type is 1.0, then system will ask you to select Workflow Queue and Workflow State from the respective drop-down list as displayed below. After selecting the appropriate option, click on Add to Workflow button.



Web WE-4



· You should see the following successful notification, once the document is successfully added.



Web WE-5



For Workflow 2.0:



There are 2 methods to add workflow item to Workflow as mentioned below:



Method 1: Adding items directly to Workflow



Method 2: Adding items through a Drop Point



Note:

Users having Workflow Super User rights or Workflow Admin rights or Workflow Submission rights should ONLY see below window while dragging and dropping the item. And only those users will be allowed to add the items either directly to Workflow or using Drop Point.



Web WE-6





Description of each method is as follows:



Method 1: Adding items directly to Workflow



1. Drag & Drop the item in the Workflow grid. Below displayed prompt opens. You should see 2 options for adding the items. Select Add items directly to the Workflow option and click Next. You can check Remember My Answer checkbox if you want the system to remember this answer and you do not want to view this prompt again for the logged-in Workflow User. However, if you wish to view this prompt again and want to change your submission type, you can do it from Options tab of PaperSave Web Workflow form by de-selecting Reset Drag & Drop Default Submission button.



Web WE-6



2. Then system will ask you to select Workflow and Workflow Step from the drop-down list. If you select Workflow Step from the drop-down list, then a new field named Owner will be displayed. You need to click Choose button to select the Workflow User.



Note:

You should see field name 'Owner' only if the Workflow User either has admin rights or is a Workflow Super User.



Web WE-7



3. Clicking on Choose button will open Select Owner page as displayed below. You need to double click on a particular user to select the user.



Click on image to magnify/shrink
Click on image to magnify/shrink



4. Thereafter, click on Add to Workflow button to add the document to the selected Workflow and exit the prompt. To go to previous step click Back. To exit without adding the document, click Close.



Web WE-9



Method 2: Adding items through a Drop Point



1. Drag & Drop the item in the Workflow grid. Below displayed prompt opens. You should see 2 options for adding the items. Select Add items through a Drop Point option and click Next. You can check Remember My Answer checkbox if you want the system to remember this answer and you do not want to view this prompt again for the logged-in Workflow User. However, if you wish to view this prompt again and want to change your submission type, you can do it from Options tab of PaperSave Web Workflow form by de-selecting Reset Drag & Drop Default Submission button.



Note:

Please take a note of below given scenarios:

1. Users having only Drop Point submission rights should not see below window and system will directly display drop point selection window and add the item using Drop Point.

2. Users not having rights either on Workflow nor on Drop Points will not be allowed to add the items to the Workflow and they should see a message that says 'You are not authorized to add items into the Workflow'.



Web WE-10



2. Select the Drop Point and click on Add to Drop Point button. To go to previous step click Back. To exit without adding the document, click Close.



Note:

You should NOT see the below prompt if only single Drop Point exists for the Workflow, and system will directly add the item to the Workflow without prompting the below prompt.



Web WE-11



4. Once the documents are successfully added, you should see below successful notification. This is how you can add documents using drag and drop functionality and thereafter you can perform the necessary actions by using different options available under Home, Annotations, Actions & Navigation and Options tab.



Web WE-12
