Define Workflow Parameter

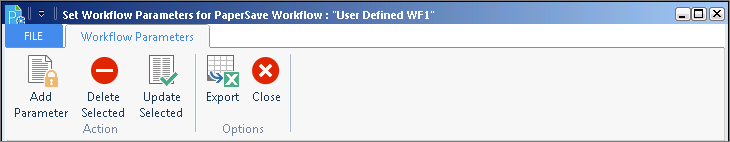

Understanding Workflow Parameters Ribbon:



Actions Group:



1. Add Parameter: This option allows you to add new parameter to the selected Workflow.



2. Delete Selected: This option will delete the selected parameter.


3. Update Selected: This option will update the changes made to the workflow parameters and you will be able to view a successful message, once the parameters are successfully updated.



Options Group:



1. Export: This option allows you to export the workflow parameters in an excel file.



2. Close: This option allows you to close the window and exit the screen.



workflow parameter wf1

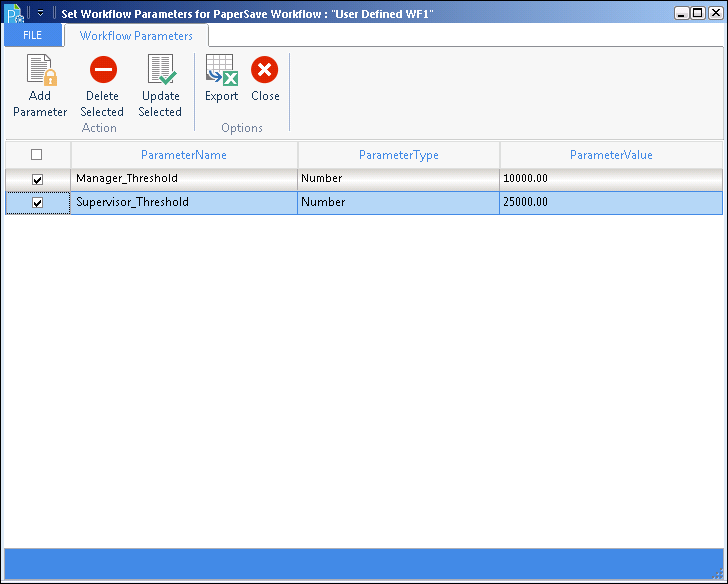

Steps for Adding new Workflow Parameter:



To add a new Workflow Parameter, you need to follow below mentioned steps:



1. Click on Add Parameter button to add new parameter.



2. As you click on Add Parameter button, bottom panel will be enabled.



3. Now enter Parameter Name under respective column in the available textbox.



4. Select the type of Parameter from the drop-down list. Options available in the Parameter Type drop-down list are mentioned below:



· String
· Number
· Date



5. Thereafter, set the parameter values under Parameter Value column based on the selected Parameter Type.



6. Once you are done with defining Parameter Values, click on Update Selected button to update the details.



7. To close the window, click on Close button and exit the screen.
