To use a ScriptActivity:

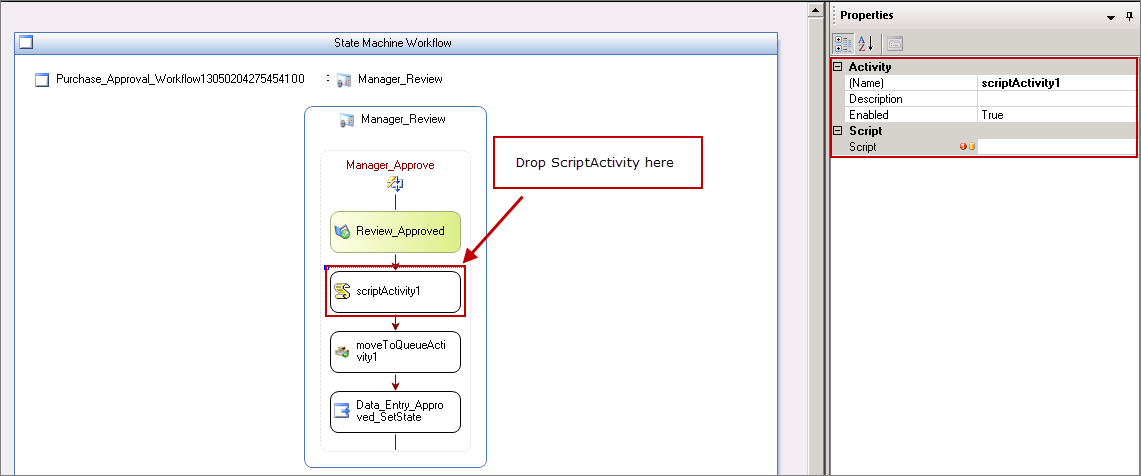

1. To create a State Activity drag an appropriate activity into the design area, then drag and drop the ScriptActivity under an event after which you want ScriptActivity as shown below:
2. The Properties of ScriptActivity will appear as shown below:

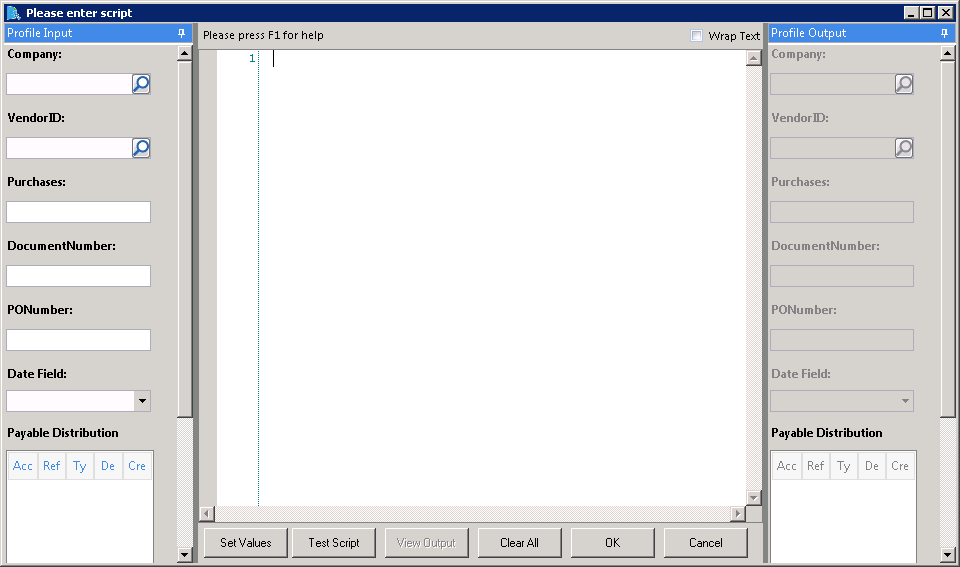

3. Click on in the Script box. The Please enter script window will open.
Example: profile.Invoice_Amount (for a profile field called \"Invoice Amount\").
You can add your own variables using the \"Globals\" object. Use Globals.add(\"Global Value Name\",\"Global Value\"). You can access Global values set in this Script Activity or preceding Script Activities by using the following syntax Globals[\"Global Value Name\"]. Remember that all object names are case sensitive. You can test the script by providing test values in the Profile Input section on the left and then by clicking on the Test Script button. Output profile values will be displayed in the Profile Output section on the right. You can view the output XML by clicking on the View Output button. Click here to get the list of PaperSave Variables that can be used while executing script.
PaperSave 5.2 provides you the facility to fetch the value from the columns of the Table Type Profile Field by below mentioned Syntax:
In the above Syntax,
|•||TableTypeProfileFieldName stands for the named of the table type profile field.|
|•||RowIndex stands for the index of the row of the table for which you want to fetch the value.|
|•||ColumnName stands for the name of the column for which you want to get the value.|
Besides this PaperSave also provides you below mentioned 3 properties:
|1.||profile.TableTypeFieldName.length: This property is used to get the length of the table type profile field.|
|2.||profile.TableTypeFieldName.NextRowIndex: This property is used to get the value of next row index.|
|3.||profile.TableTypeFieldName.LastRowIndex: This property is used to get the value of last row index.|
4. Accessing Workflow Parameters:
PaperSave gives you the ability to access Workflow Parameters using ScriptActivity. Click here to know more about Workflow Parameters. Below is the syntax available for accessing Workflow Parameters using ScriptActivity:
Parameters["Name of the parameter (eg: GLCreditAccount)"]
For your easy understanding, below is the example available for the usage of above syntax in Script Editor window.
if (Parameters["GLCreditAccount"] == 'xxx-xxxx-xx)
5. Generating Custom Error Message from Script Editor:
PaperSave 5.2 gives you the ability to generate custom error message by writing a script in script editor window in below given format:
throw new Error("<message text>")
You can write the script as given in below example:
if(<condition if true>)
throw new Error(<"My Exception Message">);
6. Once you have written the script in Script Editor window, click on Test Script to evaluate the script. If the script will get successfully executed then you will be able to view below displayed message. Click on OK button to exit the screen.

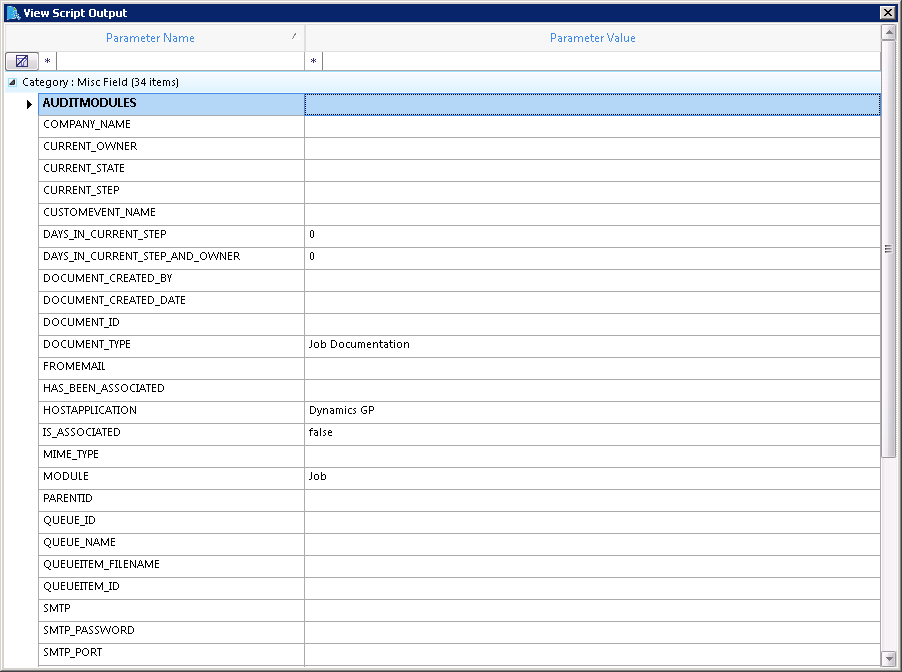

Thereafter you can view the output of the executed script by clicking on View Output button. As you click on View Output button, View Script Output Screen will open as displayed below.

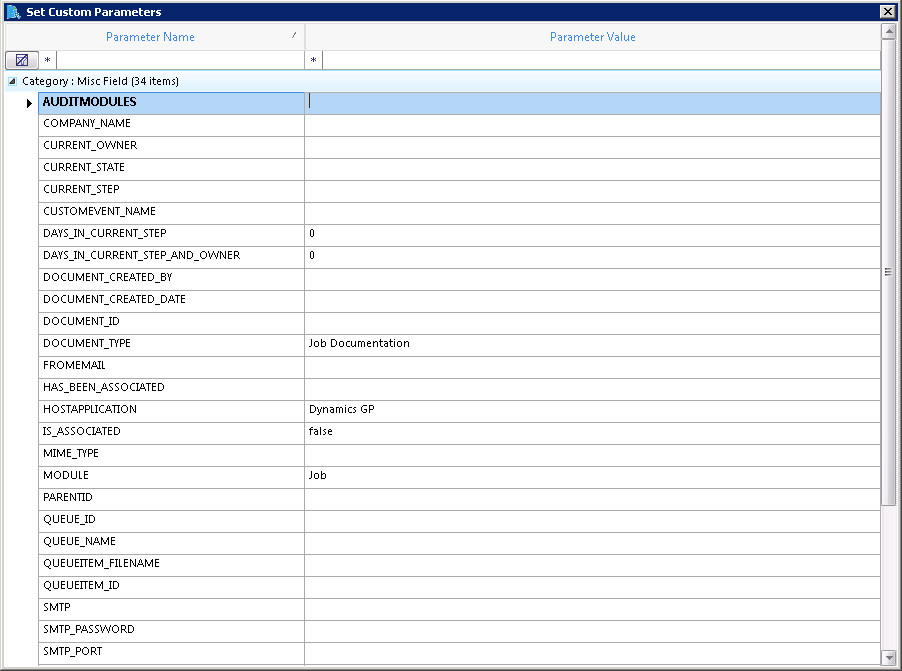

7. You can even bind custom parameters by clicking on Set Values. Set Custom Parameters window opens. You can fill the details for the desired fields under respective column.
8. Provide the appropriate values for the desired settings and click Close.
