Understanding Workflow Designer Interface

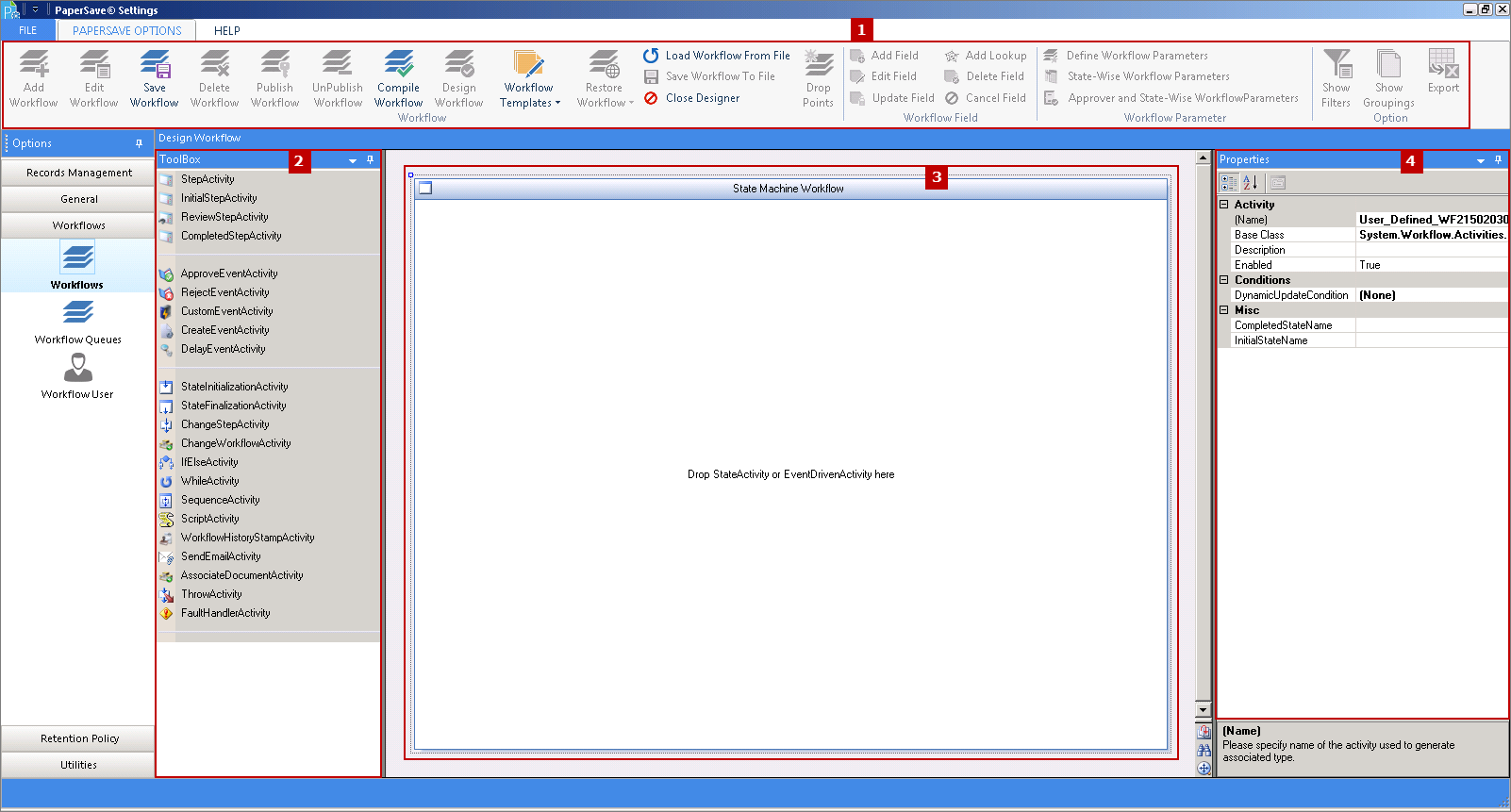

Description of various panels available in the form is as follows:



1. Ribbon: This section provides various options to perform different tasks.



2. Workflow Toolbox: This section displays all the activities and events that can be used for designing the Workflow.



3. State Machine Workflow: This section is the area where you create the Workflow.



4. Properties: This section displays the properties of the events and activities used in designing the Workflow.



Click on image to magnify/shrink
Click on image to magnify/shrink

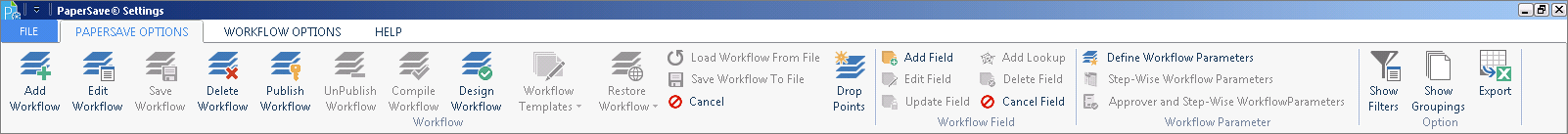

Workflow Design Ribbon Options:



Click on image to magnify/shrink
Click on image to magnify/shrink



Workflow Group Options:



1. Add Workflow: This option allows you to add a new Workflow.



2. Edit Workflow: This option allows you to edit the saved Workflow design.



3. Save Workflow:This option allows you to save the designed Workflow.



4. Delete Workflow:This option allows you to delete the designed Workflow. You can only delete a Workflow that is in an unpublished state.



5. Publish Workflow:This option allows you to publish the designed Workflow.



6. Unpublish Workflow:This option allows you to unpublish the designed Workflow.



7. Compile Workflow:This option allows you to Compile the designed Workflow.



8. Design Workflow:This option is used to open the Workflow Designer screen.



9. Workflow Templates:This option allows you to use pre-defined Workflow designs, click here for more details.



10. Restore Workflow:This option allows you to restore a designed Workflow.



11. Load Workflow From File:This option allows you to override saved Workflow designs into a PSPW format file only for the same Workflow. Click here to know more about Load Workflow From File.



Note:

While Loading a Workflow from file, you need to make sure that you only import Workflow 2.0 design into Workflow 2.0. PaperSave does not support importing a workflow 1.0 design into Workflow 2.0 and vice versa.



12. Save Workflow To File:This option allows you to save Workflow designs to a file. Click here to know more about Save Workflow To File.



13. Close Designer: This option allows you to close the Designer Workflow window.


14. Drop Points: This option allows you to create Drop Points. Click here to know more about Drop Points.



Workflow Field Group: Click here to get detailed description on Workflow Field



1. Add Field: This option allows you to add new Workflow Field for the selected Workflow.



2. Edit Field: This option allows you to edit the existing Workflow Field.



3. Save/Update Field: This option allows you to save/update the Workflow Field.



4. Add Lookup: This option allows you to set a Workflow Field that uses a query to perform a lookup operation and fetch the values from the database.



5. Delete Field: This option allows you to delete the selected Workflow Field.



6. Cancel Field: This option allows you to cancel the current action being performed on the Workflow Field.



Workflow Parameter Group:



1. Define Workflow Parameters:This option allows you to define the Workflow parameter which you can use in the Workflow design under the IfElseActivity, script activity, pre and post Event, using Parameters ["Parameter Name"]. Click here to know more about Define Workflow Parameters.



2. Step-Wise Workflow Parameters: This option allows you to set State-Wise Workflow Parameters. Click here to know more about State-Wise Workflow Parameters.



3. Approver & Step-Wise Workflow Parameter: This option allows you to set Approver and State-Wise Workflow Parameters. Click here to know more about Approver and State-Wise Workflow Parameters.
