Understanding Workflow Designer Form Interface

Description of various panels available in the form is as follows:



1. Ribbon: This section provides various options to perform different tasks.



2. Workflow Toolbox: This section displays all the activities and events that can be used for designing the Workflow.



3. State Machine Workflow: This section is the area where you create the Workflow.



4. Properties: This section displays the properties of the events and activities used in designing the Workflow.



Click on image to magnify/shrink
Click on image to magnify/shrink

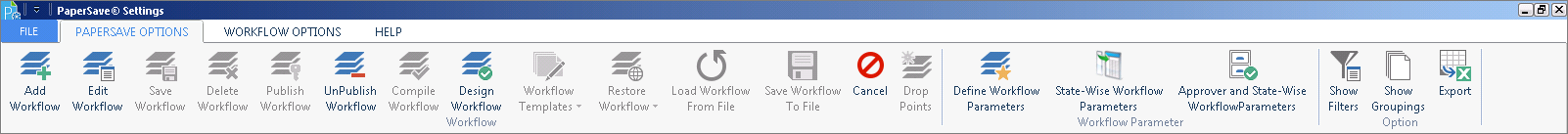

Understanding Workflow Design Ribbon Options:



Click on image to magnify/shrink
Click on image to magnify/shrink



Workflow Group Options:



1. Add Workflow: This option allows you to add a new Workflow.



2. Edit Workflow: This option allows you to edit the saved Workflow design.



3. Save Workflow: This option allows you to save the designed Workflow.



4. Delete Workflow: This option allows you to delete the designed Workflow. You can only delete a Workflow that is in an unpublished state.



5. Publish Workflow: This option allows you to publish the designed Workflow.



6. UnPublish Workflow: This option allows you to unpublish the designed Workflow.



7. Compile Workflow: This option allows you to compile the designed Workflow.



8. Design Workflow: This option allows you to open Workflow Designer Area, allowing you to edit Workflow Design.



9. Workflow Templates: This option allows you to use pre-defined Workflow designs, click here for more details.



10. Restore Workflow: This option allows you to restore a designed Workflow.



11. Load Workflow from File: This option allows you to override saved Workflow designs into a PSPW format file only for the same Workflow. Click here to know more about Load Workflow From File.



Note:

While Loading a Workflow from file, you need to make sure that you only import Workflow 1.0 design into Workflow 1.0. PaperSave does not support importing a Workflow 2.0 design into Workflow 1.0 and vice versa.



12. Save Workflow to File: This option allows you to save Workflow designs to a file. Click here to know more about Save Workflow To File.



13. Close Designer: This option allows you to close the Designer Workflow window.



Workflow Parameters Group Options:



1. Define Workflow Parameters: This option allows you to define the Workflow parameter which you can use in the Workflow design under the IfElseActivity, script activity, pre and post Event by using Parameters ["Parameter Name"]. Click here to know more about Define Workflow Parameters.



2. State-Wise Workflow Parameters: This option allows you to define the Workflow Parameters based on State of a Workflow



3. Approver and State-Wise Workflow Parameters: This option allows you to define the Workflow Parameter based on Workflow Approver and State of a Workflow.



Option Group:



1. Show Filters: This option will Show/Hide the filters for each column on the top of the Workflow Detail grid.



2. Show Groupings: This option will display the grouping bar on the top of the grid. You can group columns by dragging the header of the column to this bar.



3. Export: This option allows you to export the Workflow list displayed in the grid to an Excel file.
